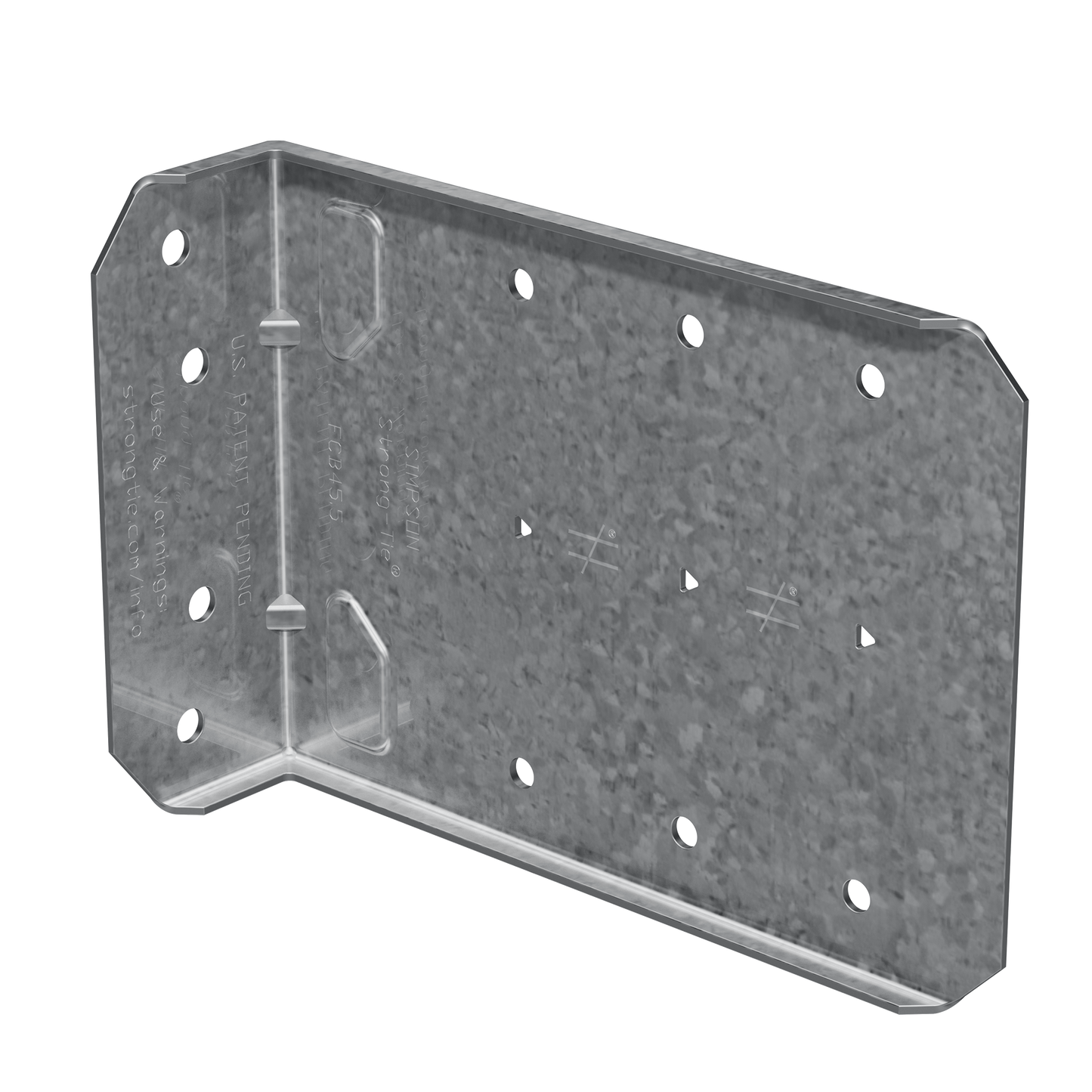

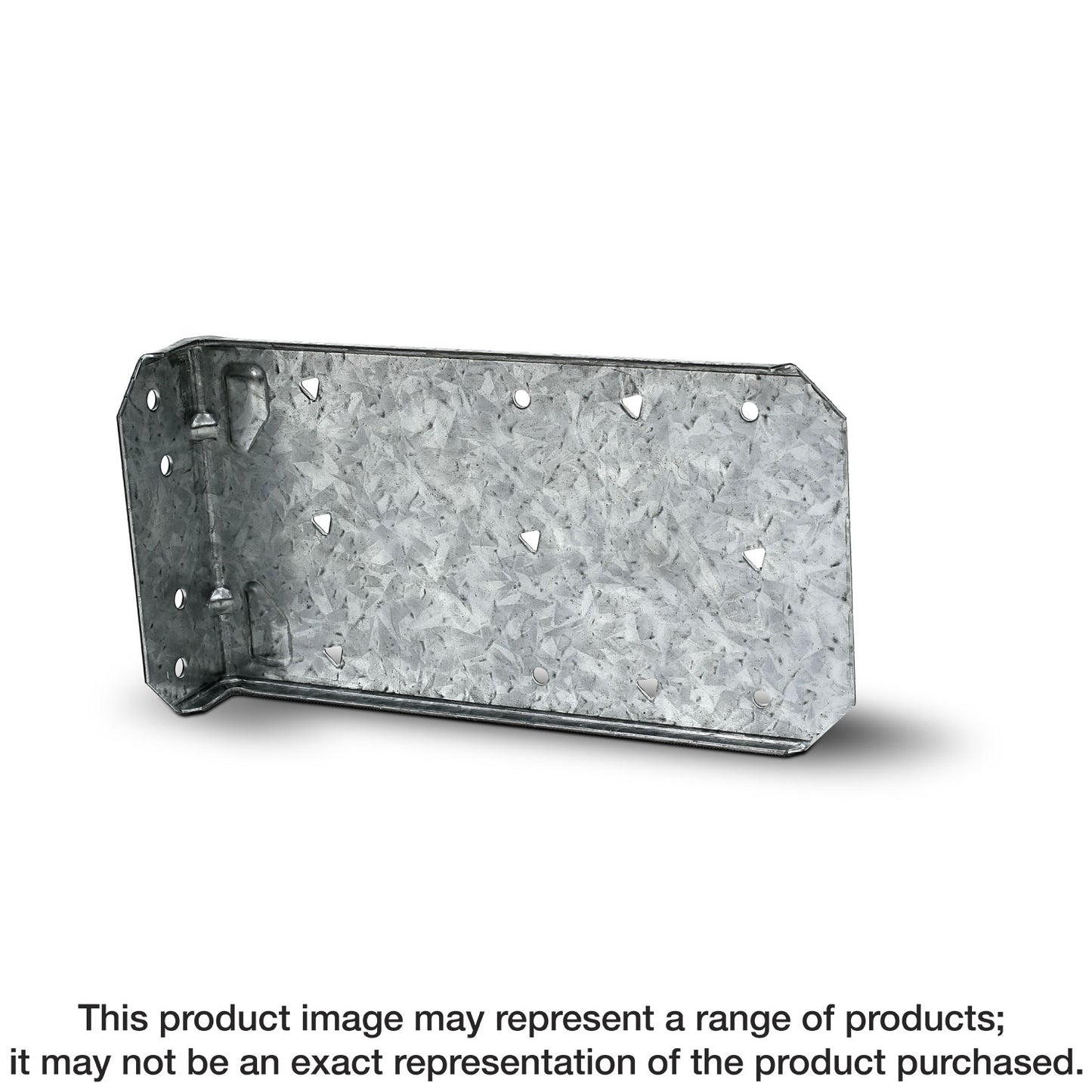

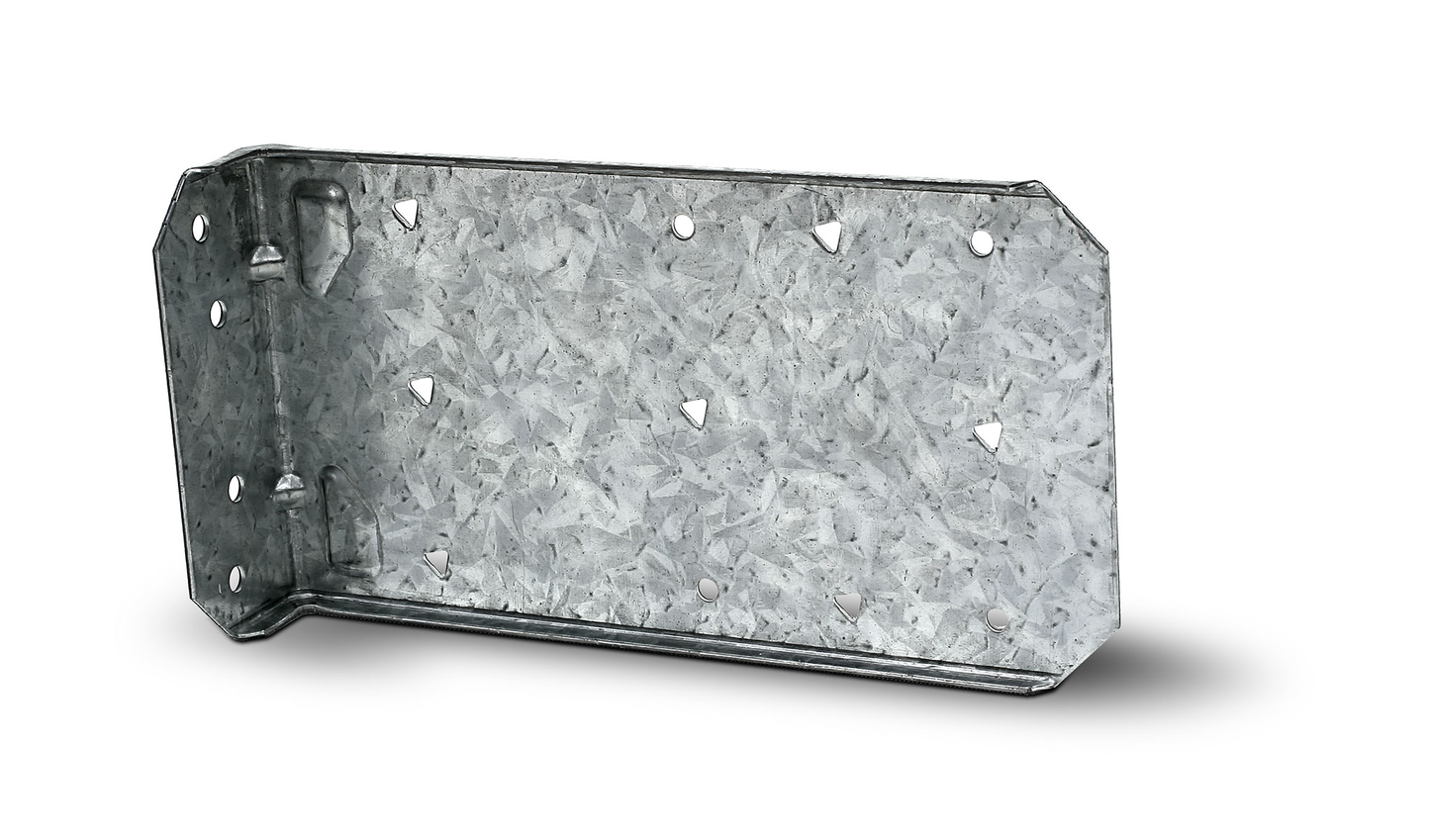

Simpson FCB45.5-R25 By-Pass Framing Fixed Clip Connector - 25/Pack
The FCB/MFCB clips are economical, high-performance fixed-clip connectors that can be used for a variety of framing applications. The FCB/MFCB are rated for tension, compression, shear and in-plane loads and offer the designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels.
Key Features
- Rated for tension, compression, shear and in-plane loads
- Provides design flexibility with varying screw and anchorage patterns that achieve different load levels
- Strategically placed stiffeners, embossments and anchor holes maximize connector performance
Material
- FCB — 54 mil (16 ga.); MFCB — 68 mil (14 ga.)
Finish
- Galvanized (G90)
Installation
- Use the specified type and number of anchors.
- Use the specified number of #12 self-drilling screws to CFS framing. Note if #10 self-drilling screws are preferred, reference DoD-Compliant Blast Design
- For installations to wood framing, see Simpson Strong-Tie engineering letter Bypass Framing Fixed-Clip Connector for Wood Framing (L-CF-FIXCLIPW)
